fq_codel: uncap count
Thank you bjorn for getting on this. Your results are comforting. It
is clear that there needs to be a reference fq_codel guide for these
OSes in the future...

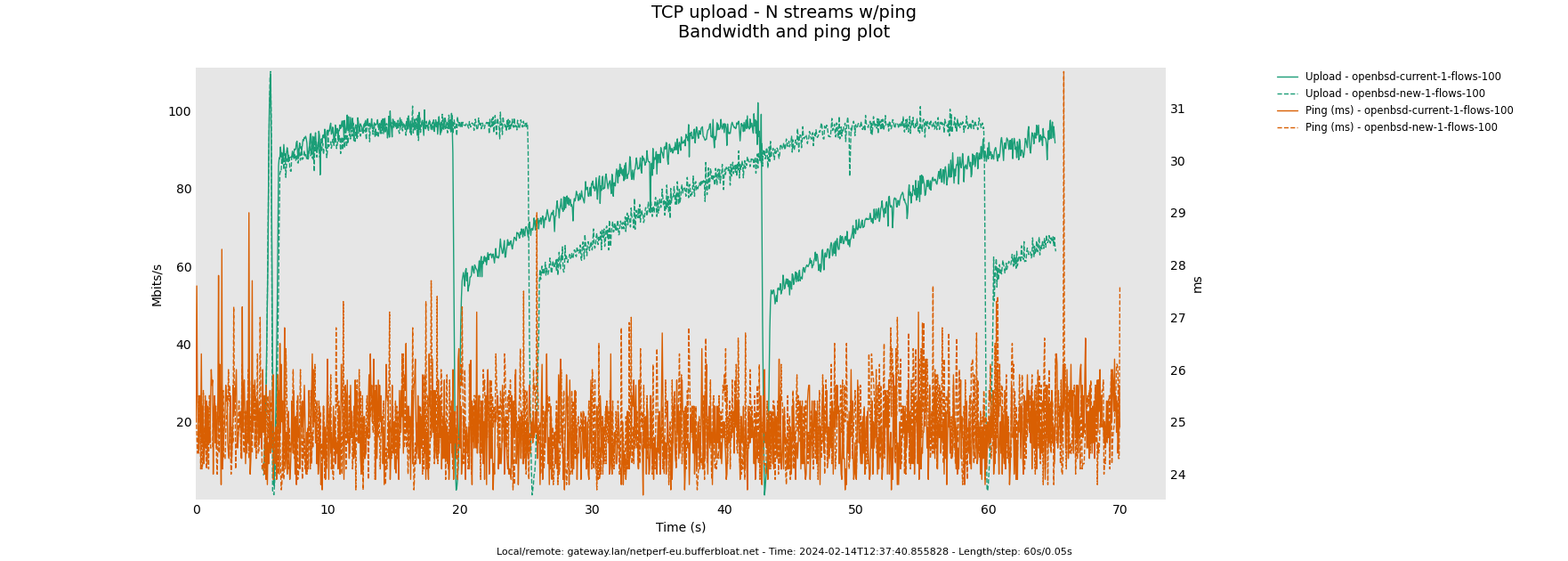

Attached (if attachments get through) is the difference between the
two versions. The non-table-lookup version sustains the throughput for
slightly longer than the table lookup version. The difference is not
much in terms of bandwidth (3%?) and for all I know would vary on
other tests.
It is trying to find a smoking gun (packet floods?) for why the drop
variable free-ran the way it did that remains on my mind. This work
was complete 12 years ago....
There were other quite subtle things that entered the linux version
over time, such as the bulk_drop facility, that I do not know made it
over here either.
It turns out that one of the possible problems with the freebsd
version was also too much logging!
https://forum.opnsense.org/index.php?topic=39046.0
On Fri, Feb 23, 2024 at 2:10 PM Bjorn Ketelaars <bket@openbsd.org> wrote:
>
> On Tue 13/02/2024 21:20, Bjorn Ketelaars wrote:
> > On Mon 12/02/2024 20:57, Bjorn Ketelaars wrote:
> > > Dave Taht reported a bug of fq_codel count being capped at 400 [0]. Our
> > > implementation uses a lookup table of the first ~400 inverse square
> > > roots, which is used to reach target, instead of a free running
> > > variable.
> > > I would not go as far of calling this a bug, instead I think this is a
> > > design choice (?). However you look at it, it is seemingly a deviation
> > > from RFC 8290, which describes the use of a free running variable, which
> > > is calculated. Per Dave's suggestion I had a look at the implementation
> > > of linux and FreeBSD.
> > >
> > > Diff below replaces the lookup table by a calculation based on Newton's
> > > method for finding the inverse root of a square root. This is the same
> > > approach as used by FreeBSD.
> > >
> > > I have been running with this diff on amd64 without any noticeable
> > > impact on performance. I'm hoping that someone is willing to review the
> > > bits below, and helps testing.
> > >
> > > While here zap a couple of white spaces.
> > >
> > > [0] https://marc.info/?l=openbsd-bugs&m=170741059623394&w=2
> >
> > I performed additional tests using flent, playing with the number of
> > flows, and noticed a significant performance drop.
> > Using the diff, softnet0 hogs all CPU time, latency increases and the
> > machine becomes unresponsive. Using the same test conditions the current
> > fq_codel implementation simply just works.
> >
> > I'm not sure what is causing the above, and I need to dig further. Sorry
> > for not finding this earlier.
> >
> > Please ignore this diff for now as it needs more work/testing.
>
> Found the cause of the performance drop: couple of printf's spewing lots
> and lots of debug info, hogging all CPU time. I have been running with
> the diff below for the last couple of days without any issue, performing
> several tests that have been suggested by Dave Taht.
>
> Conclusion so far is that the current implementation, with a 400 count
> cap, does not behave much differently from the implementation below that
> uses a Newton invsqrt approximation. Footnote is that I only tested
> speeds up to ~200mbit/s (example of results:
> https://arcfour.nl/openbsd-190mbit.tgz).
>
> I will do some additional tests, at higher speeds, when I have the
> opportunity. Until then, maybe someone is interested doing their own
> tests.
>
>
> diff --git sys/net/fq_codel.c sys/net/fq_codel.c
> index 297280bf995..bc7601108a1 100644
> --- sys/net/fq_codel.c
> +++ sys/net/fq_codel.c
> @@ -17,16 +17,15 @@
> */
>
> /*
> - * Codel - The Controlled-Delay Active Queue Management algorithm
> - * IETF draft-ietf-aqm-codel-07
> + * Controlled Delay Active Queue Management, RFC 8289
> *
> * Based on the algorithm by Kathleen Nichols and Van Jacobson with
> * improvements from Dave Taht and Eric Dumazet.
> */
>
> /*
> - * The FlowQueue-CoDel Packet Scheduler and Active Queue Management
> - * IETF draft-ietf-aqm-fq-codel-06
> + * The Flow Queue CoDel Packet Scheduler and Active Queue Management
> + * Algorithm, RFC 8290
> *
> * Based on the implementation by Rasool Al-Saadi, Centre for Advanced
> * Internet Architectures, Swinburne University of Technology, Melbourne,
> @@ -64,24 +63,23 @@ struct codel {
> int64_t start; /* The moment queue was above target */
> int64_t next; /* Next interval */
> int64_t delay; /* Delay incurred by the last packet */
> +
> + uint16_t inv_sqrt; /* Inverse square root computation */
> };
>
> struct codel_params {
> int64_t target;
> int64_t interval;
> int quantum;
> -
> - uint32_t *intervals;
> };
>
> void codel_initparams(struct codel_params *, unsigned int,
> unsigned int, int);
> -void codel_freeparams(struct codel_params *);
> void codel_enqueue(struct codel *, int64_t, struct mbuf *);
> struct mbuf *codel_dequeue(struct codel *, struct codel_params *, int64_t,
> struct mbuf_list *, uint64_t *, uint64_t *);
> struct mbuf *codel_commit(struct codel *, struct mbuf *);
> -void codel_purge(struct codel *, struct mbuf_list *ml);
> +void codel_purge(struct codel *, struct mbuf_list *);
>
> struct flow {
> struct codel cd;
> @@ -113,8 +111,8 @@ struct fqcodel {
> #define FQCF_FIXED_QUANTUM 0x1
>
> /* stats */
> - struct fqcodel_pktcntr xmit_cnt;
> - struct fqcodel_pktcntr drop_cnt;
> + struct fqcodel_pktcntr xmit_cnt;
> + struct fqcodel_pktcntr drop_cnt;
> };
>
> unsigned int fqcodel_idx(unsigned int, const struct mbuf *);
> @@ -145,15 +143,15 @@ static const struct ifq_ops fqcodel_ops = {
> fqcodel_free
> };
>
> -const struct ifq_ops * const ifq_fqcodel_ops = &fqcodel_ops;
> +const struct ifq_ops *const ifq_fqcodel_ops = &fqcodel_ops;
>
> void *fqcodel_pf_alloc(struct ifnet *);
> int fqcodel_pf_addqueue(void *, struct pf_queuespec *);
> void fqcodel_pf_free(void *);
> int fqcodel_pf_qstats(struct pf_queuespec *, void *, int *);
> unsigned int fqcodel_pf_qlength(void *);
> -struct mbuf * fqcodel_pf_enqueue(void *, struct mbuf *);
> -struct mbuf * fqcodel_pf_deq_begin(void *, void **, struct mbuf_list *);
> +struct mbuf *fqcodel_pf_enqueue(void *, struct mbuf *);
> +struct mbuf *fqcodel_pf_deq_begin(void *, void **, struct mbuf_list *);
> void fqcodel_pf_deq_commit(void *, struct mbuf *, void *);
> void fqcodel_pf_purge(void *, struct mbuf_list *);
>
> @@ -173,7 +171,7 @@ static const struct pfq_ops fqcodel_pf_ops = {
> fqcodel_pf_purge
> };
>
> -const struct pfq_ops * const pfq_fqcodel_ops = &fqcodel_pf_ops;
> +const struct pfq_ops *const pfq_fqcodel_ops = &fqcodel_pf_ops;
>
> /* Default aggregate queue depth */
> static const unsigned int fqcodel_qlimit = 1024;
> @@ -182,116 +180,51 @@ static const unsigned int fqcodel_qlimit = 1024;
> * CoDel implementation
> */
>
> -/* Delay target, 5ms */
> -static const int64_t codel_target = 5000000;
> -
> -/* Grace period after last drop, 16 100ms intervals */
> -static const int64_t codel_grace = 1600000000;
> -
> -/* First 399 "100 / sqrt(x)" intervals, ns precision */
> -static const uint32_t codel_intervals[] = {
> - 100000000, 70710678, 57735027, 50000000, 44721360, 40824829, 37796447,
> - 35355339, 33333333, 31622777, 30151134, 28867513, 27735010, 26726124,
> - 25819889, 25000000, 24253563, 23570226, 22941573, 22360680, 21821789,
> - 21320072, 20851441, 20412415, 20000000, 19611614, 19245009, 18898224,
> - 18569534, 18257419, 17960530, 17677670, 17407766, 17149859, 16903085,
> - 16666667, 16439899, 16222142, 16012815, 15811388, 15617376, 15430335,
> - 15249857, 15075567, 14907120, 14744196, 14586499, 14433757, 14285714,
> - 14142136, 14002801, 13867505, 13736056, 13608276, 13483997, 13363062,
> - 13245324, 13130643, 13018891, 12909944, 12803688, 12700013, 12598816,
> - 12500000, 12403473, 12309149, 12216944, 12126781, 12038585, 11952286,
> - 11867817, 11785113, 11704115, 11624764, 11547005, 11470787, 11396058,
> - 11322770, 11250879, 11180340, 11111111, 11043153, 10976426, 10910895,
> - 10846523, 10783277, 10721125, 10660036, 10599979, 10540926, 10482848,
> - 10425721, 10369517, 10314212, 10259784, 10206207, 10153462, 10101525,
> - 10050378, 10000000, 9950372, 9901475, 9853293, 9805807, 9759001,
> - 9712859, 9667365, 9622504, 9578263, 9534626, 9491580, 9449112,
> - 9407209, 9365858, 9325048, 9284767, 9245003, 9205746, 9166985,
> - 9128709, 9090909, 9053575, 9016696, 8980265, 8944272, 8908708,
> - 8873565, 8838835, 8804509, 8770580, 8737041, 8703883, 8671100,
> - 8638684, 8606630, 8574929, 8543577, 8512565, 8481889, 8451543,
> - 8421519, 8391814, 8362420, 8333333, 8304548, 8276059, 8247861,
> - 8219949, 8192319, 8164966, 8137885, 8111071, 8084521, 8058230,
> - 8032193, 8006408, 7980869, 7955573, 7930516, 7905694, 7881104,
> - 7856742, 7832604, 7808688, 7784989, 7761505, 7738232, 7715167,
> - 7692308, 7669650, 7647191, 7624929, 7602859, 7580980, 7559289,
> - 7537784, 7516460, 7495317, 7474351, 7453560, 7432941, 7412493,
> - 7392213, 7372098, 7352146, 7332356, 7312724, 7293250, 7273930,
> - 7254763, 7235746, 7216878, 7198158, 7179582, 7161149, 7142857,
> - 7124705, 7106691, 7088812, 7071068, 7053456, 7035975, 7018624,
> - 7001400, 6984303, 6967330, 6950480, 6933752, 6917145, 6900656,
> - 6884284, 6868028, 6851887, 6835859, 6819943, 6804138, 6788442,
> - 6772855, 6757374, 6741999, 6726728, 6711561, 6696495, 6681531,
> - 6666667, 6651901, 6637233, 6622662, 6608186, 6593805, 6579517,
> - 6565322, 6551218, 6537205, 6523281, 6509446, 6495698, 6482037,
> - 6468462, 6454972, 6441566, 6428243, 6415003, 6401844, 6388766,
> - 6375767, 6362848, 6350006, 6337243, 6324555, 6311944, 6299408,
> - 6286946, 6274558, 6262243, 6250000, 6237829, 6225728, 6213698,
> - 6201737, 6189845, 6178021, 6166264, 6154575, 6142951, 6131393,
> - 6119901, 6108472, 6097108, 6085806, 6074567, 6063391, 6052275,
> - 6041221, 6030227, 6019293, 6008418, 5997601, 5986843, 5976143,
> - 5965500, 5954913, 5944383, 5933908, 5923489, 5913124, 5902813,
> - 5892557, 5882353, 5872202, 5862104, 5852057, 5842062, 5832118,
> - 5822225, 5812382, 5802589, 5792844, 5783149, 5773503, 5763904,
> - 5754353, 5744850, 5735393, 5725983, 5716620, 5707301, 5698029,
> - 5688801, 5679618, 5670480, 5661385, 5652334, 5643326, 5634362,
> - 5625440, 5616560, 5607722, 5598925, 5590170, 5581456, 5572782,
> - 5564149, 5555556, 5547002, 5538488, 5530013, 5521576, 5513178,
> - 5504819, 5496497, 5488213, 5479966, 5471757, 5463584, 5455447,
> - 5447347, 5439283, 5431254, 5423261, 5415304, 5407381, 5399492,
> - 5391639, 5383819, 5376033, 5368281, 5360563, 5352877, 5345225,
> - 5337605, 5330018, 5322463, 5314940, 5307449, 5299989, 5292561,
> - 5285164, 5277798, 5270463, 5263158, 5255883, 5248639, 5241424,
> - 5234239, 5227084, 5219958, 5212860, 5205792, 5198752, 5191741,
> - 5184758, 5177804, 5170877, 5163978, 5157106, 5150262, 5143445,
> - 5136655, 5129892, 5123155, 5116445, 5109761, 5103104, 5096472,
> - 5089866, 5083286, 5076731, 5070201, 5063697, 5057217, 5050763,
> - 5044333, 5037927, 5031546, 5025189, 5018856, 5012547, 5006262
> -};
> +/*
> + * Run a Newton method step:
> + * new_invsqrt = (invsqrt / 2) * (3 - count * invsqrt^2)
> + *
> + * Here, invsqrt is a fixed point number (< 1.0), 32bit mantissa, aka Q0.32
> + */
> +static inline void
> +codel_step(struct codel *cd)
> +{
> + uint32_t invsqrt, invsqrt2;
> + uint64_t val;
> +
> +/* sizeof_in_bits(inv_sqrt) */
> +#define INV_SQRT_BITS (8 * sizeof(uint16_t))
> +/* needed shift to get a Q0.32 number from inv_sqrt */
> +#define INV_SQRT_SHIFT (32 - INV_SQRT_BITS)
> +
> + invsqrt = ((uint32_t)cd->inv_sqrt) << INV_SQRT_SHIFT;
> + invsqrt2 = ((uint64_t)invsqrt * invsqrt) >> 32;
> + val = (3LL << 32) - ((uint64_t)cd->drops * invsqrt2);
> + val >>= 2; /* avoid overflow in following multiply */
> + val = (val * invsqrt) >> (32 - 2 + 1);
> +
> + cd->inv_sqrt = val >> INV_SQRT_SHIFT;
> +}
>
> void
> codel_initparams(struct codel_params *cp, unsigned int target,
> unsigned int interval, int quantum)
> {
> - uint64_t mult;
> - unsigned int i;
> -
> - /*
> - * Update observation intervals table according to the configured
> - * initial interval value.
> - */
> - if (interval > codel_intervals[0]) {
> - /* Select either specified target or 5% of an interval */
> - cp->target = MAX(target, interval / 5);
> + /* Default interval, 100ms (in ns), RFC 8289 section 4.2 */
> + if (interval > 0)
> cp->interval = interval;
> + else
> + cp->interval = 100000000;
>
> - /* The coefficient is scaled up by a 1000 */
> - mult = ((uint64_t)cp->interval * 1000) / codel_intervals[0];
> -
> - /* Prepare table of intervals */
> - cp->intervals = mallocarray(nitems(codel_intervals),
> - sizeof(codel_intervals[0]), M_DEVBUF, M_WAITOK | M_ZERO);
> - for (i = 0; i < nitems(codel_intervals); i++)
> - cp->intervals[i] = ((uint64_t)codel_intervals[i] *
> - mult) / 1000;
> - } else {
> - cp->target = MAX(target, codel_target);
> - cp->interval = codel_intervals[0];
> - cp->intervals = (uint32_t *)codel_intervals;
> - }
> + /* Default delay target, 5ms (in ns), RFC 8289 section 4.3 */
> + if (target > 0)
> + cp->target = target;
> + else
> + cp->target = 5000000;
>
> cp->quantum = quantum;
> }
>
> -void
> -codel_freeparams(struct codel_params *cp)
> -{
> - if (cp->intervals != codel_intervals)
> - free(cp->intervals, M_DEVBUF, nitems(codel_intervals) *
> - sizeof(codel_intervals[0]));
> - cp->intervals = NULL;
> -}
> -
> static inline void
> codel_gettime(int64_t *now)
> {
> @@ -329,16 +262,14 @@ codel_enqueue(struct codel *cd, int64_t now, struct mbuf *m)
> }
>
> /*
> - * Select the next interval according to the number of drops
> + * Set the next interval according to the number of drops
> * in the current one relative to the provided timestamp.
> */
> static inline void
> control_law(struct codel *cd, struct codel_params *cp, int64_t rts)
> {
> - unsigned int idx;
> -
> - idx = min(cd->drops, nitems(codel_intervals) - 1);
> - cd->next = rts + cp->intervals[idx];
> + cd->next = rts + (uint32_t)(((uint64_t)cp->interval *
> + (cd->inv_sqrt << INV_SQRT_SHIFT)) >> 32);
> }
>
> /*
> @@ -442,21 +373,22 @@ codel_dequeue(struct codel *cd, struct codel_params *cp, int64_t now,
> cd->dropping = 1;
>
> /*
> - * If we're still within the grace period and not
> - * meeting our minimal delay target we treat this
> - * as a continuation of the previous observation
> + * If we're still within the grace period (16 *
> + * interval, RFC 8289 section 5.5) and not meeting
> + * our minimal delay target we treat this as a
> + * continuation of the previous observation
> * interval and shrink it further. Otherwise we
> * start from the initial one.
> */
> delta = cd->drops - cd->ldrops;
> - if (delta > 1) {
> - if (now < cd->next ||
> - now - cd->next < codel_grace)
> - cd->drops = delta;
> - else
> - cd->drops = 1;
> - } else
> + if (delta > 1 && (now < cd->next ||
> + now - cd->next < 16 * cp->interval)) {
> + cd->drops = delta;
> + codel_step(cd);
> + } else {
> cd->drops = 1;
> + cd->inv_sqrt = ~0U >> INV_SQRT_SHIFT;
> + }
> control_law(cd, cp, now);
> cd->ldrops = cd->drops;
>
> @@ -466,6 +398,7 @@ codel_dequeue(struct codel *cd, struct codel_params *cp, int64_t now,
> m = codel_commit(cd, m);
> ml_enqueue(free_ml, m);
> cd->drops++;
> + codel_step(cd);
>
> *dpkts += 1;
> *dbytes += m->m_pkthdr.len;
> @@ -653,7 +586,7 @@ fqcodel_deq_begin(struct fqcodel *fqc, void **cookiep,
> codel_gettime(&now);
>
> for (flow = first_flow(fqc, &fq); flow != NULL;
> - flow = next_flow(fqc, flow, &fq)) {
> + flow = next_flow(fqc, flow, &fq)) {
> m = codel_dequeue(&flow->cd, &fqc->cparams, now, &ml,
> &fqc->drop_cnt.packets, &fqc->drop_cnt.bytes);
>
> @@ -790,7 +723,6 @@ fqcodel_pf_free(void *arg)
> {
> struct fqcodel *fqc = arg;
>
> - codel_freeparams(&fqc->cparams);
> free(fqc->flows, M_DEVBUF, fqc->nflows * sizeof(struct flow));
> free(fqc, M_DEVBUF, sizeof(struct fqcodel));
> }
--
https://blog.cerowrt.org/post/2024_predictions/
Dave Täht CSO, LibreQos
fq_codel: uncap count
