On Tue, 02 Jun 2026 02:18:48 +0200
Kirill A. Korinsky <kirill@korins.ky> wrote:
> On Tue, 02 Jun 2026 00:11:15 +0200,
> "requiem." <rqm@0xde501a7a.net> wrote:
> >
> > Dear Tech@,
> >
> > I recently got a Logitech QuickCam Pro 5000 for a small project
> > deliberately because the uvideo(4) manpage lists it as supported.
> >
> > For reference, `uvideo-firmware` is installed and `sysctl
> > kern.video.record` is enabled. I have used `video(1)` successfully
> > with cheapie USB microcopes etc.
> >
> > However for the Logitech QuickCam Pro 5K it seems the video device
> > just does not attach:
> >
> > ```
> > $ tail -f /var/log/messages
> > Jun 1 203507 r0cinante /bsd: uaudio0 at uhub0 port 11
> > configuration 1 interface 3 "Logitech QuickCam Pro 5000" rev
> > 2.00/0.05 addr 4 Jun 1 203507 r0cinante /bsd: uaudio0: class v1,
> > high-speed, sync, channels: 0 play, 1 rec, 2 ctls Jun 1 203507
> > r0cinante /bsd: audio1 at uaudio0 Jun 1 203507 r0cinante /bsd:
> > ugen0 at uhub0 port 11 configuration 1 "Logitech QuickCam Pro 5000"
> > rev 2.00/0.05 addr 4 ```
> >
> > There is no attached uvideo device.
> >
> > usbdevs -vvvv says,
> >
> > ```
> > addr 08: 046d:08c5 Logitech, QuickCam Pro 5000
> > high speed, power 500 mA, config 1, rev 0.05, iSerial 0EE65192
> > driver: uaudio1
> > driver: ugen0
> > ```
> > Again, no uvideo device.
> >
> > As the CVS commit history for uvideo.c already mentions some issues
> > with the QuickCam models upon the suggestion of a friend I
> > compiled with the following quick hack made to the existing quirks:
> >
> > ```
> > Index: uvideo.c
> > ===================================================================
> > RCS file: /cvs/src/sys/dev/usb/uvideo.c,v
> > diff -u -p -r1.265 uvideo.c
> > --- uvideo.c 6 Sep 2025 13:45:41 -0000 1.265
> > +++ uvideo.c 1 Jun 2026 20:03:49 -0000
> > @@ -387,7 +387,7 @@ const struct uvideo_devs {
> > UVIDEO_FLAG_ISIGHT_STREAM_HEADER
> > },
> > { /* Incorrectly reports as
> > bInterfaceClass=UICLASS_VENDOR */
> > - { USB_VENDOR_LOGITECH,
> > USB_PRODUCT_LOGITECH_QUICKCAMOEM_1 },
> > + { USB_VENDOR_LOGITECH,
> > USB_PRODUCT_LOGITECH_QUICKCAMPRO5K_1 }, NULL,
> > NULL,
> > UVIDEO_FLAG_VENDOR_CLASS
> > ```
> >
> > This gets me an attaching uvideo0 device in dmesg but /dev/video
> > still won't work because it "can't find video interface"
> >
> > dmesg says the following with the custom kernel:
> > ```
> > uvideo0 at uhub0 port 11 configuration 1 interface 0 "Logitech
> > QuickCam Pro 5000" rev 2.00/0.05 addr 6 uvideo0: can't find video
> > interface uaudio1 at uhub0 port 11 configuration 1 interface 3
> > "Logitech QuickCam Pro 5000" rev 2.00/0.05 addr 6 uaudio1: class
> > v1, high-speed, sync, channels: 0 play, 1 rec, 2 ctls
> > ```
> >
> > And `video` still fails with,
> > ```
> > $ video
> > video: /dev/video: Device not configured
> > ```
> >
> > Just to test, I tried adding a new definition for QUICKCAMPRO5K_1
> > with "NULL, NULL, 0" instead of "NULL, NULL,
> > UVIDEO_FLAG_VENDOR_CLASS" but that got me back to no video device
> > attaching at all.
> >
> > So it seems to me that there is something strange going on with the
> > QuickCam still, possibly the quirk configuration already in
> > uvideo.c is not working somehow?
> >
> > But I'm afraid this is where I exhausted all knowledge available to
> > me. Might you be able to please look at this?
> >
> > Dmesg.boot and output of usbdevs -vvvv for both the patched and the
> > stock kernel (-current) attached.
> >
> > Yours
> >
> > rqm
>
> May I ask you to try this diff?
>
> It is compiled tested only.
>
> If it moved forward but still doesn't work, please, rebuild kernel
> with UVIDEO_DEBUG, you may add define at line 40 at uvideo.c, it't
> enough.
>
> It should dump all descriptors which should be enough to figure out
> does it picks the right interface or not.
>
> Index: sys/dev/usb/uvideo.c
> ===================================================================
> RCS file: /home/cvs/src/sys/dev/usb/uvideo.c,v
> diff -u -p -r1.265 uvideo.c
> --- sys/dev/usb/uvideo.c 6 Sep 2025 13:45:41 -0000 1.265
> +++ sys/dev/usb/uvideo.c 2 Jun 2026 00:16:55 -0000
> @@ -392,6 +392,12 @@ const struct uvideo_devs {
> NULL,
> UVIDEO_FLAG_VENDOR_CLASS
> },
> + { /* Incorrectly reports as bInterfaceClass=UICLASS_VENDOR
> */
> + { USB_VENDOR_LOGITECH,
> USB_PRODUCT_LOGITECH_QUICKCAMPRO5K_1 },
> + NULL,
> + NULL,
> + UVIDEO_FLAG_VENDOR_CLASS
> + },
> { /* Infrared camera not supported */
> { USB_VENDOR_CHICONY, USB_PRODUCT_CHICONY_IRCAMERA },
> NULL,
> @@ -556,10 +562,13 @@ uvideo_attach(struct device *parent, str
> usb_interface_descriptor_t *id;
> const usb_descriptor_t *desc;
> struct usbd_desc_iter iter;
> + const struct uvideo_devs *quirk;
> int i;
>
> sc->sc_udev = uaa->device;
>
> + quirk = uvideo_lookup(uaa->vendor, uaa->product);
> +
> /* Find the first unclaimed video interface. */
> for (i = 0; i < uaa->nifaces; i++) {
> if (usbd_iface_claimed(sc->sc_udev, i))
> @@ -568,6 +577,10 @@ uvideo_attach(struct device *parent, str
> if (id == NULL)
> continue;
> if (id->bInterfaceClass == UICLASS_VIDEO)
> + break;
> + if (quirk != NULL &&
> + quirk->flags & UVIDEO_FLAG_VENDOR_CLASS &&
> + id->bInterfaceClass == UICLASS_VENDOR)
> break;
> }
> if (i == uaa->nifaces) {
>
>
Hello Kirill,

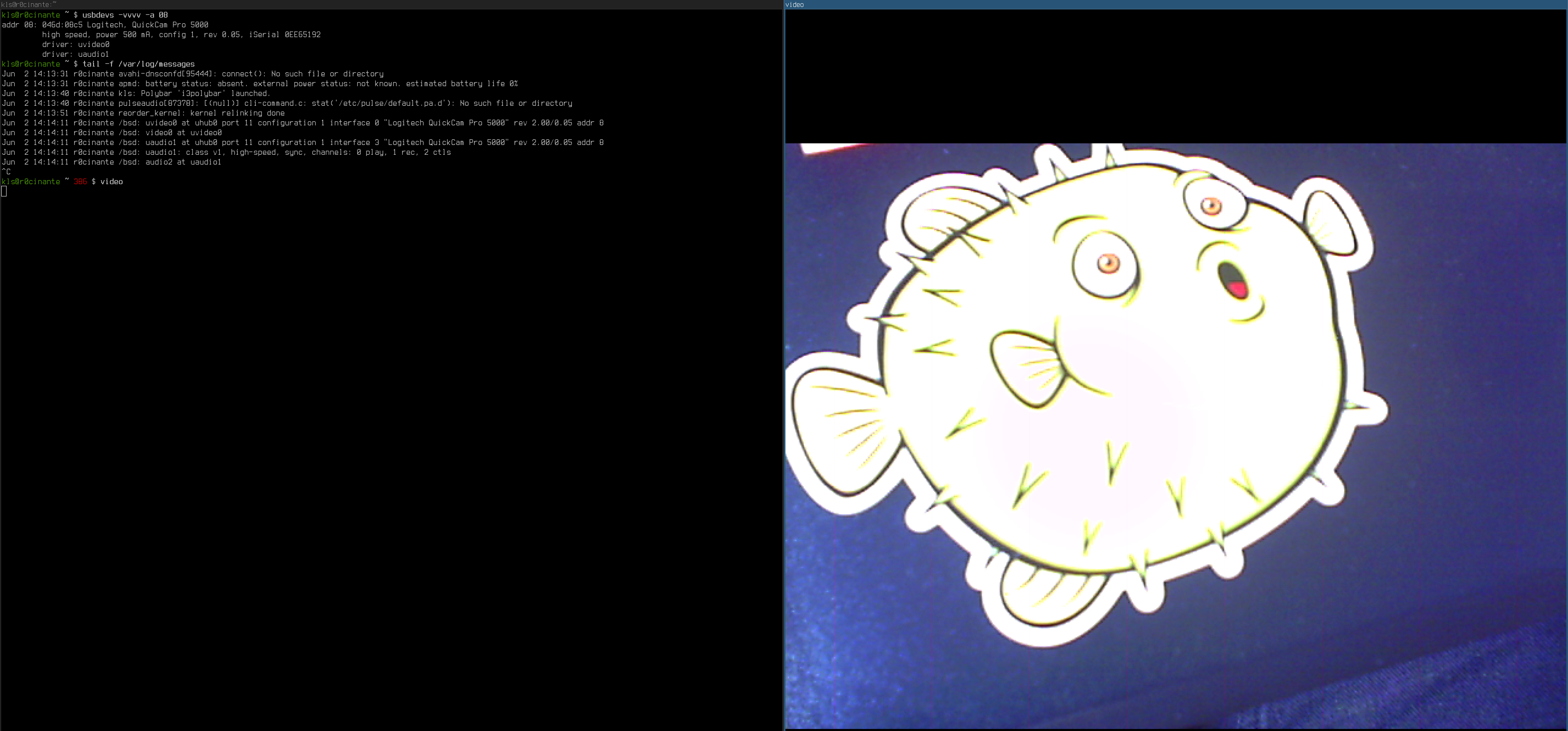

The patch worked like a charm! See attached screenshot. :)
```
$ tail /var/log/messages
Jun 2 14:14:11 r0cinante /bsd: uvideo0 at uhub0 port 11 configuration
1 interface 0 "Logitech QuickCam Pro 5000" rev 2.00/0.05 addr 8
Jun 2 14:14:11 r0cinante /bsd: video0 at uvideo0
Jun 2 14:14:11 r0cinante /bsd: uaudio1 at uhub0 port 11 configuration
1 interface 3 "Logitech QuickCam Pro 5000" rev 2.00/0.05 addr 8
Jun 2 14:14:11 r0cinante /bsd: uaudio1: class v1, high-speed, sync,
channels: 0 play, 1 rec, 2 ctls Jun 2 14:14:11 r0cinante /bsd: audio2
at uaudio1
```
I also recompiled the kernel, just to be thorough, with
`UVIDEO_DEBUG` added, as you suggested. I attach the dmesg.boot with the
flag enabled for your reference, but as I said the webcam works with
the patch regardless.
Thank you so much for the quick response and for the patch. Hope this
makes it into -current! :)
Yours
requiem
